NEXX360
Next Generation 360°Security Solution BodyCam

A hands-free 360° CCTV for responsive safety and security systems.


The NEXX360

is a 360° wearable CCTV.


360° coverage with
4 HD cameras.


Up to 8H of operation
(with the external battery)


Convenient neck-band
form factor


64GB
memory storage


Real-time video streaming
over LTE/5G networks.


NEXX360 is a straightforward product which do not require complex setup and infrastructure to use. It is perfectly functional on its own. If end user does not have specific applications in mind, we are able to provide professional advice on how to maximise the value of this product.


Each complete set of NEXX 360 includes:

  • CameraNeck

  • Main System

  • Main Pouch

  • Micro SD Card (64GB)

  • Cradle

  • AC Adapter

  • Power Cord

  • External Battery

  • External Battery Pouch

  • Wi-Fi Dongle

System


System Appearance
81.5mm(W) × 142.8mm(H) × 26.5mm(D), 252g



Features

  • High performance ARM processor

  • Basic 64GB memory card

  • Battery life (Up to 8 hours)

  • Built-in Li-Polymer main battery (Up to 2 hours) + External Li-ion battery (Up to 6 hours)

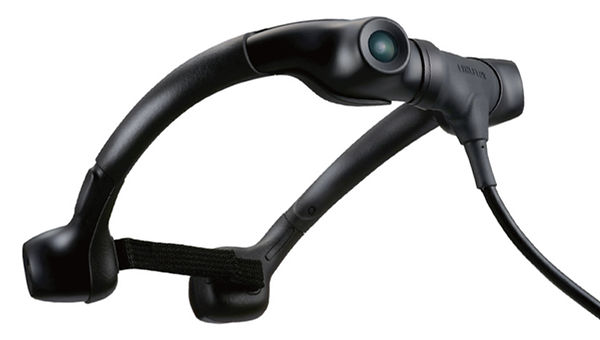

Neck camera


Neck camera Appearance
Normal Neck: 172.7mm(W) × 164.7mm(H) × 90.5mm(D), 255g
Big Neck: 194.7mm(W) × 166.4mm(H) × 90.5mm(D), 270g



Features

  • 4 HD cameras (1280 x 720)

  • F2.0

  • Angle of view: Diagonal 133°each

  • Noise reduction (2D-NR, 3D-NR)

Cradle


Cradle Appearance

133.7mm(W) × 175.7mm(H) × 63.1mm(D), 375g

External interface

Cradle: System port, external battery port, LAN port, DC-power

External battery


External battery Appearance
87.4mm(W) × 149.9mm(H) × 56.6mm(D), 379g

Specification

Camera
Image sensor : 1/2.9” Sony Exmor CMOS
Focal length : 3.0mm
Lens type : Fixed lens ×4
Maximum aperture value : F2.0
View angle : 133°×4
Minimum illumination : 1.0 Lux, F2.0



Video
Compression codec : H.264
Bandwidth : 512Kbps ~ 8Mbps live streaming: Max 15fps@ 1920Xl080
Frame rate :; saving in memory card: Max 15fps@1280X720 LensX4
Video saving format in memory card : AVI
Resolution : live streaming: 720X480, 1280X720,1920X1080; saving in memory card: 1280x720 LensX4

Audio
Compression : G.711
Sampling : 16KHz
Bandwidth : 128Kbps

Certification
IP code : IPX5
UL94 : Main parts of Neck camera, System: V0; Rubber of Neck camera: HB
System : CE, FCC, KC, VCCI
External Battery : CB, KC, PSE, UN38.3
Cradle : CE, CEC, DOE, FCC, KC, VCCI
Wireless dongle : CE, FCC, KC, TELEC



External interface
USB : USB 2.0 Type A
Microphone : Built in MIC
Wireless LAN : Supported (Wireless version only) ※Supported with dongle(IEEE802.11 b/g /n)
Speaker : Beep sound speaker
5G : Supported (Wireless version only)※ Supported with dongle
LTE : Supported (Wireless version only) ※ Supported with dongle

Specifications of parts
Peripheral device : External battery / Wireless LAN dongle / LTE dongle / Cradle
Storage : Memory card: Max 64GB
Power supply Battery usage time : Built-in battery : Approx. 2 hours External battery: Approx. 6 hours
Charging time : Built-in battery: Approx. 2 hours External battery: Approx. 6 hours
Power : Cradle DC 19V / 3.42A(65W)
Size Neck camera : Normal neck: 172.7mm(W)×164.7mm(H)×90.5mm(D)
Big neck : 194.7mm(W)×166.4mm(H)×90.5mm(D)
System : 81.5mm(W)×142.8mm(H)×26.5mm(D)
Cradle : 133.7mm(W)×175.7mm(H)×63.1mm(D)
External battery : 87.4mm(W)×149.9mm(H)×56.6mm(D)
Weight Neck camera Normal neck : 255g Big neck: 270g
System : 252g External battery: 379g
Cradle main unit : 375g

Communication methods

Another great thing about NEXX360 lies in the fact that it can communicates with the server over various networks, making it extremely versatile.


Applications

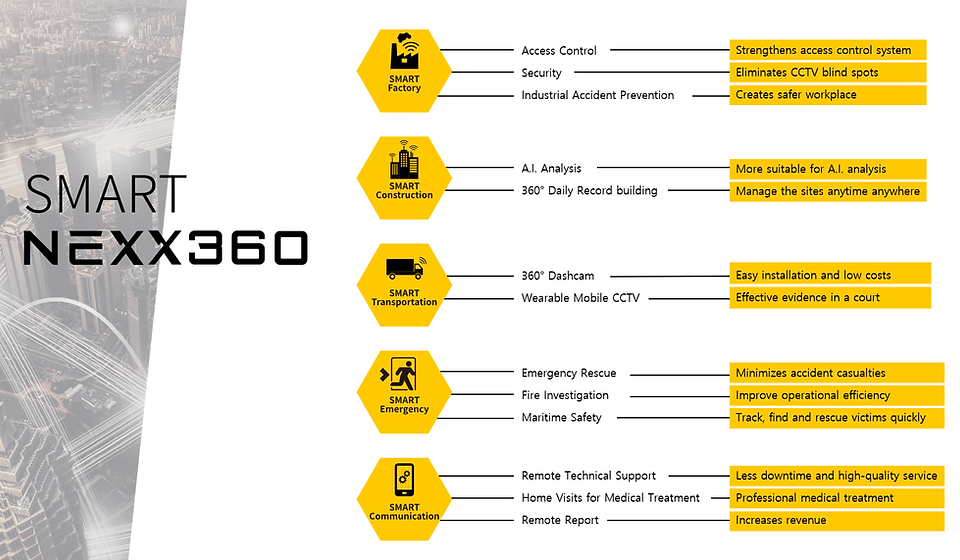

NEXX360 is a product with incredibly unique proposition and has great uses in different settings. The picture below demonstrated some of the applications for NEXX360.

nexx360 - application.png
