We are a disruptive perimeter and border security provider, developing intrusion detection systems, that implement the latest technologies and designs at a fraction of the costs.
Jaga Systems solution is an advanced scanner that provides complete situational awareness; with volumetric detection. It is equipped with radar; using cutting edge sensing technologies to prevent intrusions. Single unit detects movement upto 1km in 120° band.
Any movement within range can be detected by a single unit thus serving as an early warning system for the user. With the ability to detect, track and classify objects as threats; it creates Real Time Actionable Intelligence to optimize the decision making process and improve deployment to contain an intrusion incident.
JAGA Systems advance radars provide up-to-date perimeter protection solutions to monitor critical areas ... with low cost of ownership. JAGA Systems radars detects intrusion in all weather and all lighting conditions with a minimal false alarm rate. Having detection ranges of up to 1000 meters, covering up to 180 acres with a single radar.
Built-in integration empowers security personnel to monitor from a single workstation. Sentry at perimeter could be enabled to view via a tablet. This simplifies operator interfaces and reduced response times.
JASS software solution is fully automated for managing radars and PTZ cameras. Upon detection of intrusion, JASS automatically slew-to-cue a PTZ camera to focus and continuously track the intruder. JASS sends alert to the VMS to display real-time video for target verification. Seamless integration with most of the major PSIM and VMS software; for an end-to-end solution. This ensures that the total number of cameras required is much less.
Radar based perimeter intrusion detection system
Innovative technology has enhanced physical security through innovative ways of detecting intrusions. Radar technology impacting Perimeter Intrusion and Detection Systems (PIDS) for high-security sites.
Fixed and PTZ (pan, tilt, zoom) cameras, video analytics and other 2D sensor systems lack the much-needed context required on large, complex sites where there is a high volume of passing traffic, whether on foot or vehicular.
Fixed and PTZ cameras will continue to have their place in PIDS security solutions, and they have until now been widely accepted and adopted. That does not mean they address all of the requirements. Organizations are using Video Analytics (VA) to address some of the shortcomings, but can still benefit from additional insight.
One of the more glaring limitations of the old method is the inability of mesh cameras and video analytics to deliver continuous and unique identification tracking to a centimeter accuracy. For end users, adding more cameras doesn’t always capture the full picture. The trend toward adding additional cameras and video analytics, which is undoubtedly supported by the manufacturers of these products, has led to a rise in the workload for site guards, which in turn increases risk and expenses.
Better, more comprehensive views are made possible by 3D sensing, which has a considerably more sophisticated ability to “see” an area than cameras have.
JAGA Systems solution can automate and enhance video-based security systems by integrating with a number of video management systems and using rich object data. The sensors allow security experts to rapidly locate and track any potential security threats, and easy automation of other security resources is made possible by the out-of-the-box integration with video systems.
For high-security facilities whose only previous option was to use video analytics, fixed and PTZ cameras, and other binary sensor systems, our solution can address several of the flaws in PIDS. This significantly alters the risk profile on sites.
JAGA Systems solution can offer surface measurements and an accurate resolution of objects within 3cm and provides precise location data for tracking objects, whether it is for surveillance or business intelligence.
In contrast to cameras, JAGA Systems solution poses no risk to Personally Identifiable Information (PII), nor does it capture biometric information.
Effective and affordable radar, uses cutting edge sensing technologies to prevent intrusions. Ability to see ahead of the perimeter boundary; to detect, track and classify objects as threats provides complete situational awareness to security personnel.

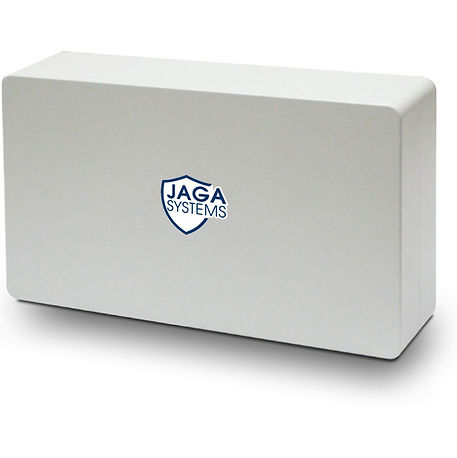

SPS250
Detection Range : 250m
Area covered : 50,000m² (>12 acres)
Elevation Coverage : 30°
Azimuth Coverage : 120°
Azimuth accuracy : 1°
Scan rate : 2 scans per second
Power Consumption : <3.5w
Range Resolution : 1m
Frequency : C-Band
Weight : 1.5kg
System Interface : Ethernet, POE - IEEE 802.3at Type 1 (802.3af) & Type 2
SPS500
Detection Range : 500m/600m
Area covered : 250,000m² (>61acres)
Elevation Coverage : 30°
Azimuth Coverage : 120°
Azimuth accuracy : 1°
Scan rate : 2 scans per second
Power Consumption : <3.5w
Range Resolution : 1m
Frequency : C-Band
Weight : 1.5kg
System Interface : Ethernet, POE - IEEE 802.3at Type 1 (802.3af) & Type 2
SPS1000
Detection Range : 1000m/1200m
Area covered : >180acres
Elevation Coverage : 30°
Azimuth Coverage : 100°
Azimuth accuracy : 1°
Scan rate : 2 scans per second
Power Consumption : <5w
Range Resolution : 1m
Frequency : C-Band
Weight : 3kg
System Interface : Ethernet, POE - IEEE 802.3at Type 1 (802.3af) & Type 2
